TE ConnectivitySwitzerland

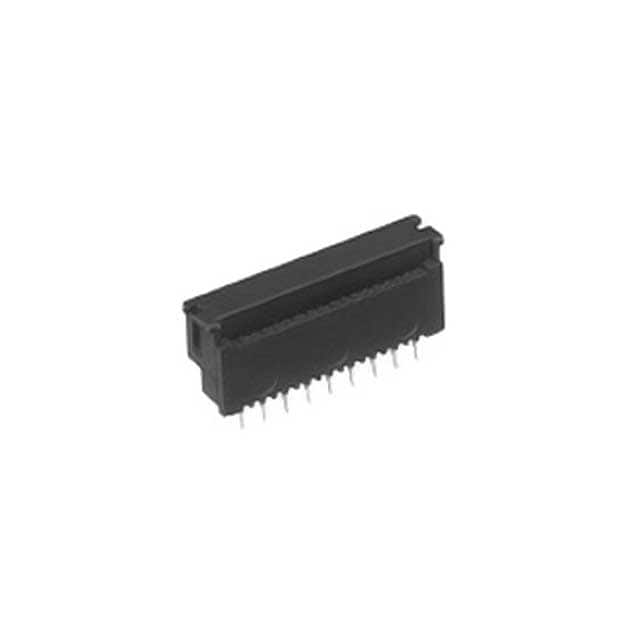

CONN FFC VERT 9POS 1.27MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Positions9
Pitch1.27 mm
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 150V |
| Environment and package | |
| Height Above Board | 0.310" (7.87mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tube |
| Other | |
| Actuator Color | Black |
| Actuator Material | Thermoplastic |
| Base Product Number | 487576 |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.10mm ~ 0.31mm |
| Flat Flex Type | FFC |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Locking Feature | Slide Lock |
| Material Flammability Rating | - |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 9 |
| Pitch | 0.050" (1.27mm) |
| Product Status | Active |
| Series | AMPMODU |
| Termination | Solder |
