TE ConnectivitySwitzerland

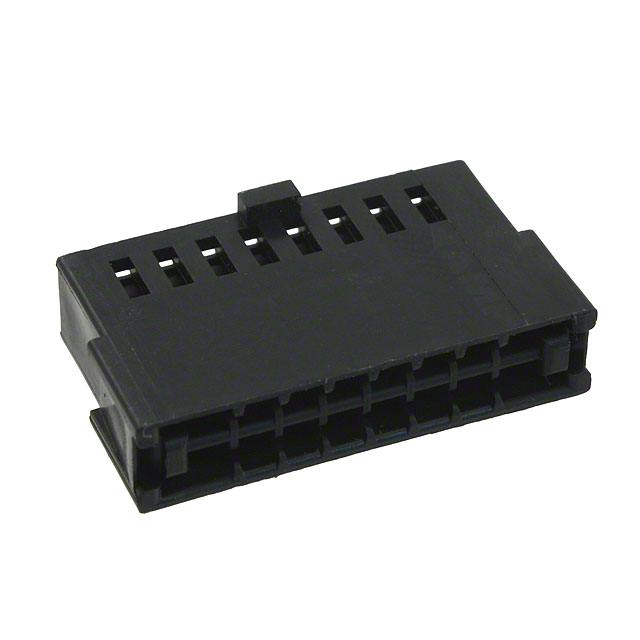

CONN FFC RCPT HSG 16POS 2.54MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1.5 A |
| Voltage Rating | 300 V |
| Environment and package | |
| Operating Temperature | -65°C ~ 105°C |
| Package | Bulk |
| Other | |
| Base Product Number | 487223 |
| Connector Type | Housing for Female Contacts |
| Features | - |
| FFC, FCB Thickness | 0.05-0.13mm |
| Flat Flex Type | FFC, Discrete Wire |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Insulation Diameter | 0.025" ~ 0.056" (0.64mm ~ 1.42mm) |
| Locking Feature | Locking Ramp |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Active |
| Series | - |
| Wire Gauge | 22-32 AWG |
