IMS Connector SystemsGermany

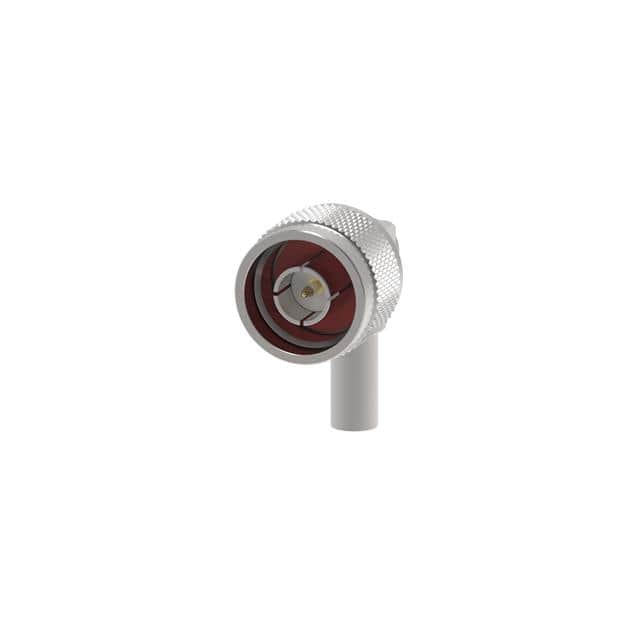

N CABLE MOUNT ANGLE PLUG
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderMale
Impedance50 Ω
Max frequency11 GHzMax
| Power | |
|---|---|
| Voltage Rating | 250 V |
| AC and DC characteristics | |
| Frequency - Max | 11 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Other | |
| Base Product Number | 484.62.1 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | IMS Connector Systems |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Crimp |
