Pomona ElectronicsUnited States

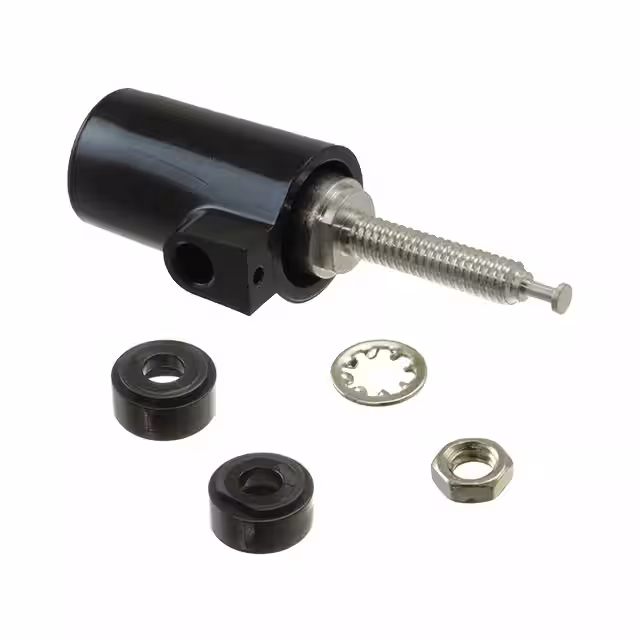

CONN BIND POST SPRING-LOAD BLACK
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 15 A |
| Voltage Rating | 30VAC/60VDC |
| Environment and package | |
| Head Size | 0.530" OD (13.46mm) |
| Package | Bulk |
| Other | |
| Base Product Number | 4770 |
| Color | Black |
| Cross Hole Diameter | - |
| Head Style | Smooth, Spring Loaded |
| Material - Body | Brass |
| Material - Insulation | Polycarbonate (PC) |
| Mfr | Pomona Electronics |
| Nut Material | Brass |
| Nut Plating | - |
| Panel Thickness | 0.063" ~ 0.375" (1.60mm ~ 9.53mm) |
| Plating - Body | Tin |
| Product Status | Active |
| Series | - |
| Termination | Threaded and Turret |
| Termination Thread | - |
| Type | Standard |
