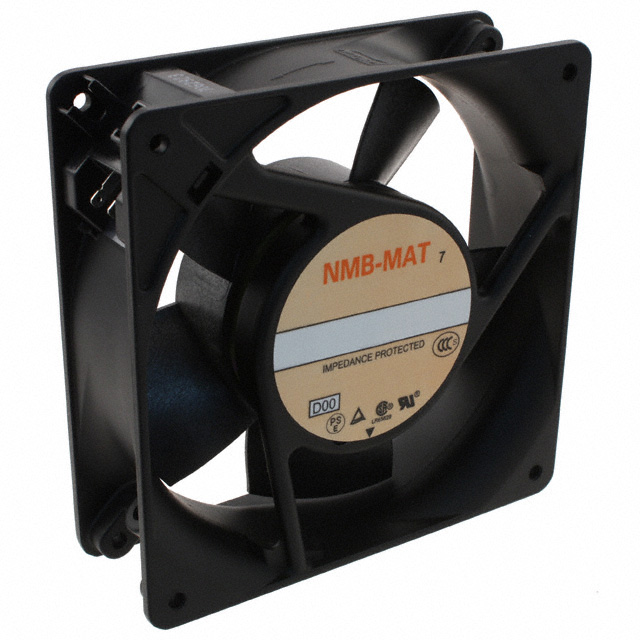

4715FS-12T-B30-D00
NMB Technologies CorporationJapan

4715FS-12T-B30-D00

AC Fans

FAN AXIAL 119X38MM 115VAC TERM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.180A
Power (Watts)14.50W
Voltage Range-
Voltage - Rated115VAC
AC and DC characteristics
Noise39.0dB
Environment and package
Lifetime @ Temp.-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Size / DimensionSquare - 119mm L x 119mm H
Other
Air Flow90.0 CFM (2.52m³/min)
Approval AgencyCE, CSA, TUV, UL
Base Product Number4715FS
Bearing TypeBall
Fan TypeTubeaxial
Features-
Ingress Protection-
ManufacturerNMB Technologies Corporation
Material - BladePlastic
Material - FrameAluminum
PackagingBulk
Part StatusObsolete
RPM2650 RPM
SeriesFS
Static Pressure0.220 in H2O (54.8 Pa)
Termination2 Terminals
Weight1.2 lbs (544.3 g)
Width38.00mm

Documents

No documents are linked to this part yet.
