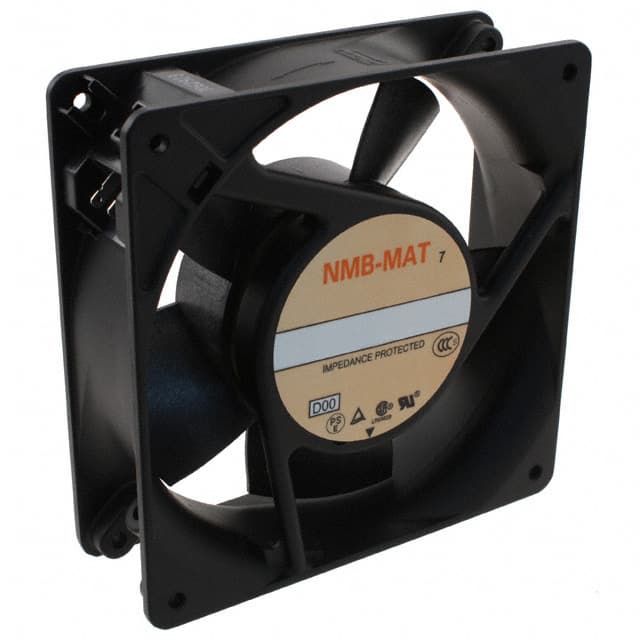

FAN AXIAL 119X38MM 115VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.100A |
| Power (Watts) | 9.80W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 36.0dB |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 80.0 CFM (2.24m³/min) |
| Approval Agency | CE, CSA, TUV, UL |
| Base Product Number | 4715FS |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Mfr | NMB Technologies Corporation |
| Product Status | Obsolete |
| RPM | 2300 RPM |
| Series | FS |
| Static Pressure | 0.130 in H2O (32.5 Pa) |
| Termination | 2 Terminals |
| Weight | 1.2 lbs (544.3 g) |
| Width | 38.00mm |
