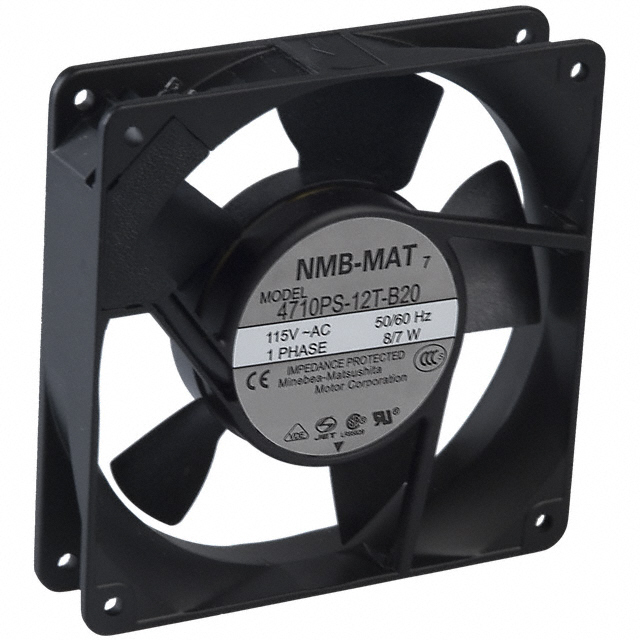

4710PS-12T-B20-A00
NMB Technologies CorporationJapan

4710PS-12T-B20-A00

ObsoleteAC Fans

FAN AXIAL 119X25.5MM 115VAC TERM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.090A
Power (Watts)7.00W
Voltage Range-
Voltage - Rated115VAC
AC and DC characteristics
Noise30.0dB
Environment and package
Lifetime @ Temp.50000 Hrs @ 25°C
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
PackageBulk
Size / DimensionSquare - 119mm L x 119mm H
Other
Air Flow53.0 CFM (1.48m³/min)
Approval AgencyCE, CSA, UL, VDE
Base Product Number4710PS
Bearing TypeBall
Fan TypeTubeaxial
Features-
Ingress Protection-
Material - BladePolycarbonate (PC), Fiberglass Reinforced
Material - FrameAluminum
MfrNMB Technologies Corporation
Product StatusObsolete
RPM2000 RPM
SeriesPS
Static Pressure0.086 in H2O (21.5 Pa)
Termination2 Terminals
Weight0.8 lb (362.87 g)
Width25.50mm

Documents

No documents are linked to this part yet.
