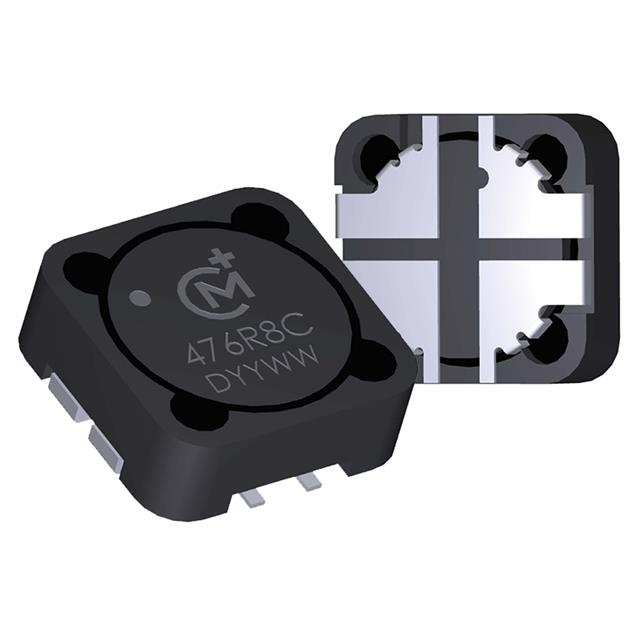

FIXED IND 100UH 1.01A 686MOHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance100 µH
Rated current1.01 AMax
DC resistance686 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.01 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 10 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Package / Case | Nonstandard, 4 Lead |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 47 |
| DC Resistance (DCR) | 686mOhm Max |
| Inductance | 100 µH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | 4700 |
| Shielding | Shielded |
| Tolerance | - |
| Type | Wirewound |
