Würth ElektronikGermany

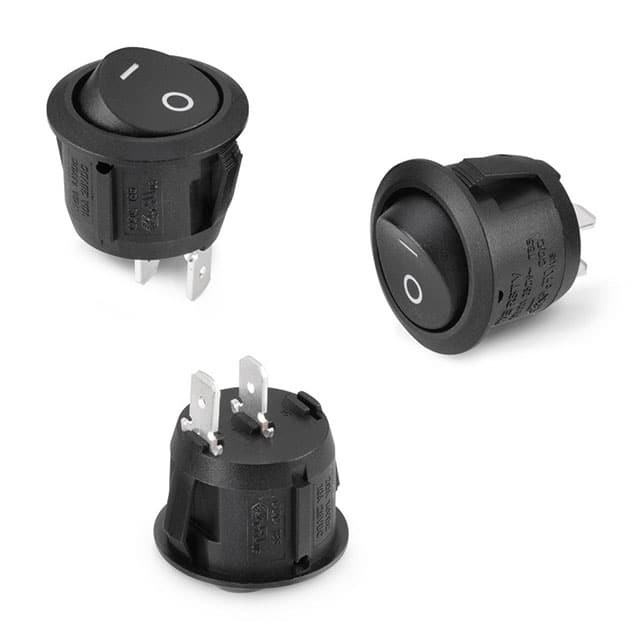

ROCKER SWITCH 10A/250V, CUT-OUT
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST
Switch functionOn-Off
Current rating10 AMax
Voltage rating250 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 10A (AC/DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 28 V |
| Environment and package | |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | 0°C~85°C |
| Package | Tray |
| Panel Cutout Dimensions | Circular - 20.20mm Dia |
| Other | |
| Actuator Marking | O I |
| Actuator Type | Round |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 10,000 Cycles |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WS-RSTV |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
