Würth ElektronikGermany

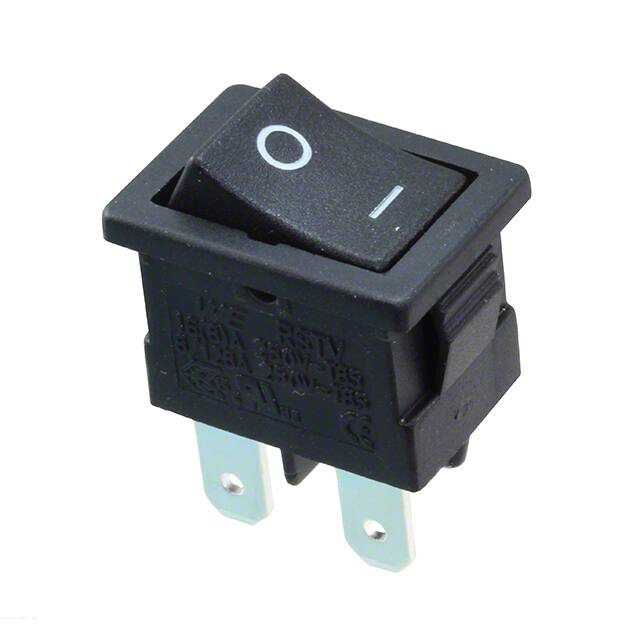

WS-RSTV 19.2 X 12.9 MM PANEL CUT
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST
Switch functionOn-Off
Current rating16 AMax
Voltage rating250 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 16A (AC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | 0°C~85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 19.20mm x 12.90mm |
| Other | |
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 10,000 Cycles |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WS-RSTV |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
