470037CY

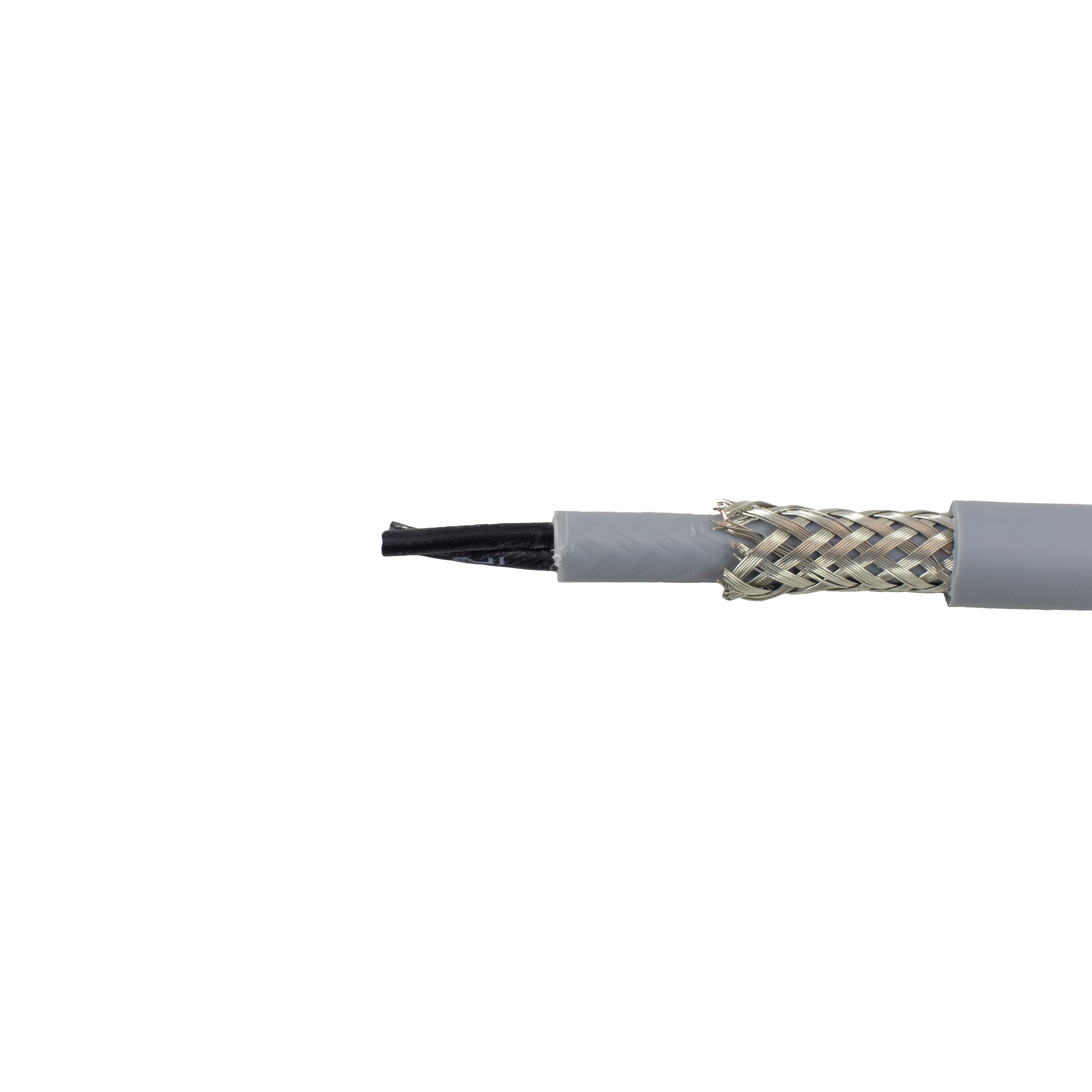

ActivePro-Met is a line of flexible industrial cable imperious to oils and resistant to UV damage. Alpha’s uncompromising standards provide consistency and uniformity in every cable.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300/500 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 80°C(static), -30 to 70°C (dynamic) |
| Other | |
| (1) Color(s) | GREY |
| 1) Component 1 | 3 X 1 COND |
| 1) IEC | a) Component 1 |
| (1) Print Color | WHITE |
| (1) Twists | 12.1 Twists/meter (min) |
| 2) Bend Radius | 6X Cable Diameter(static), 20X Cable Diameter(dynamic) |
| 2) Conductor DCR | 26 Ω/Km @20°C, Max. |
| (2) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| 2) Other | IEC 60332-1 Flame Behavior |
| 2) Shield | Tinned Copper BRAID Shield,80% Coverage, Min. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Sunlight Resistance | Yes |
| a) 300 M | 18 x 12 x 8 Continuous length |
| a) Color(s) | Clear, Grey |
| a) Component 1 | EN 60228 Conductors, Class 5 |
| b) 100 M | 12 x 6 x 3.5 Continuous length |
| b) Print | ALPHA WIRE-* P/N 470037CY PRO-MET 300/500V 3G0.75MM2 PVC/PVC/TCB/PVC MULTI CORE CONTROL CABLE ◁ VDE-REG 8770 ▷ CE ROHS DDDYANN XXXXXXX M * = Factory Code |
| c) 50 M | 12 x 4.5 x 3.5 Continuous length |
| c) Cabling | 3 COND Cabled |
| Color | BLACK #1 |
| Cond | 1 |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
