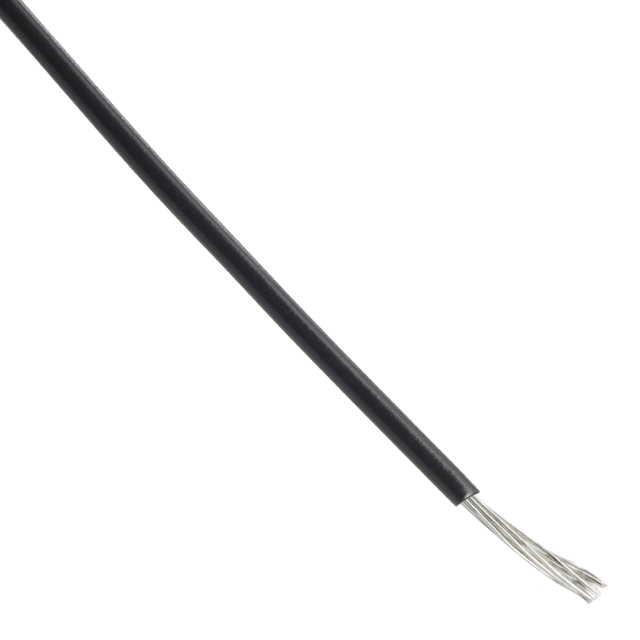

HOOK-UP STRND 16AWG BLACK 4000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Operating Temperature | -40°C ~ 105°C |
| Package | Spool |
| Other | |
| Base Product Number | 461626 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Bare |
| Conductor Strand | 26/30 |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.124" (3.15mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.032" (0.81mm) |
| Length | 4000' (1219.2m) |
| Mfr | Alpha Wire |
| Product Status | Obsolete |
| Ratings | UL Style 1015/1230 |
| Series | - |
| Wire Gauge | 16 AWG |
Documents
No documents are linked to this part yet.
