API Delevan Inc.United States

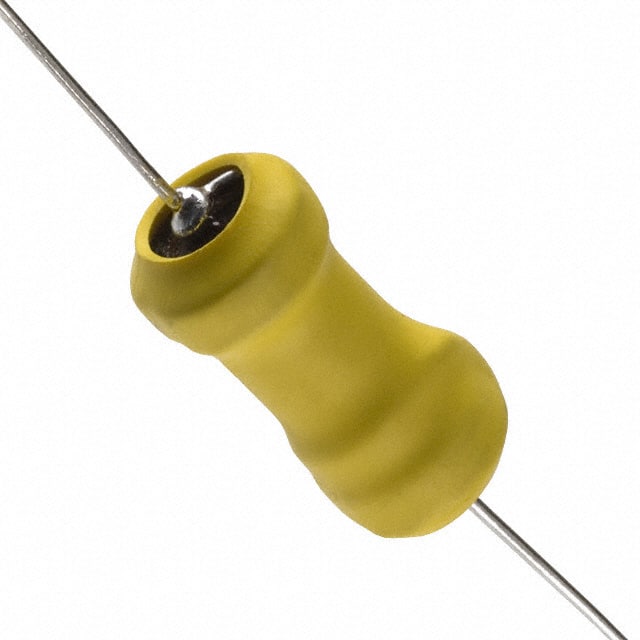

FIXED IND 220UH 2.025A 162 MOHM
All alternatives
View full reportTechnical parameters
Key specs
Inductance220 µH
Rated current2.025 AMax
Saturation current1.2 AMax
DC resistance162 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 2.025 A |
| Current - Saturation (Isat) | 1.2A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 162mOhm Max |
| Inductance | 220 µH |
| Material - Core | Ferrite |
| Mfr | API Delevan Inc. |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | 4590 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Drum Core, Wirewound |
