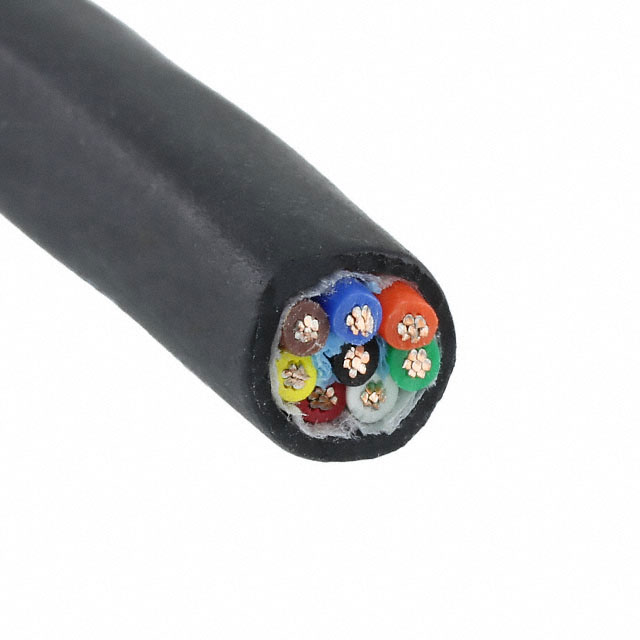

CABLE 8COND 20AWG BLACK FEET
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -50°C ~ 125°C |
| Package | Digi-Spool®, Continuous Spool |
| Spool Size | 1000.0' (304.8m) |
| Other | |
| Base Product Number | 45058 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/28 |
| Features | Biological Compatibility, Rip Cord |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.328" (8.33mm) |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 0.0450" (1.143mm) |
| Length | Enter Number of Feet in Order Quantity |
| Mfr | Alpha Wire |
| Number of Conductors | 8 |
| Product Status | Active |
| Ratings | ISO 10993 |
| Series | Xtra-Guard® 4 |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | - |
| Wire Gauge | 20 AWG |
