Würth ElektronikGermany

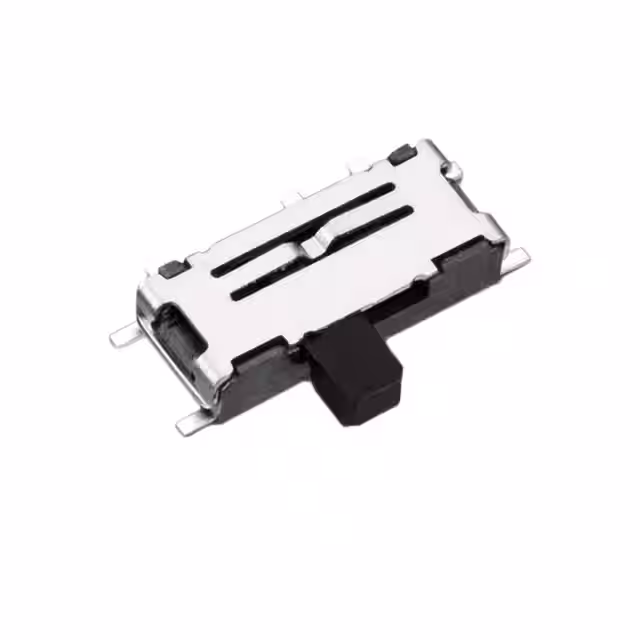

MINI SLIDE SWITCH 6.7 X 2.7 MM.
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Switch functionOn-On
Current rating300 mAMax
Voltage rating5 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 300mA (DC) |
| Voltage Rating - DC | 5 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Length | 1.50mm |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Non-Shorting (BBM) |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Mechanical Life | 10,000 Cycles |
| Mfr | Würth Elektronik |
| Operating Force | 240gf |
| Product Status | Active |
| Series | WS-SLSU |
| Switch Function | On-On |
| Switch Travel | 1.50mm |
| Termination Style | SMD (SMT) Tab |
