Radiall USA, Inc.France

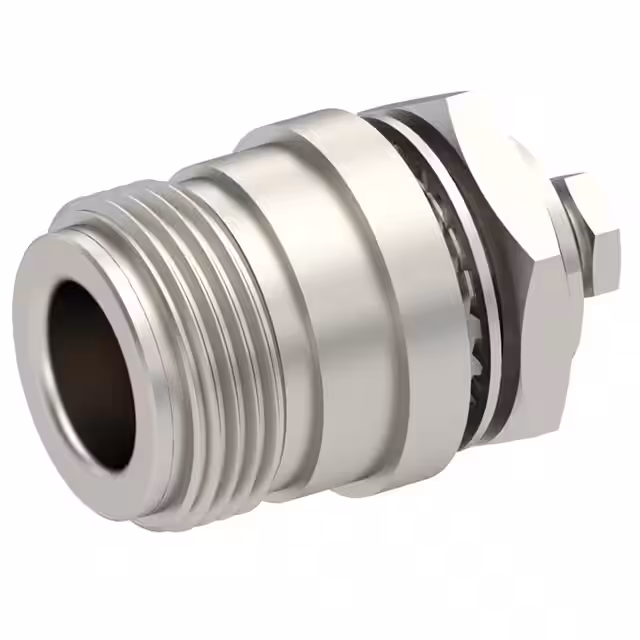

N / STRAIGHT JACK FEMALE SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderFemale
Impedance50 Ω
Max frequency11 GHzMax
| Power | |
|---|---|
| Voltage Rating | 350 V |
| AC and DC characteristics | |
| Frequency - Max | 11 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C~155°C |
| Package | Bulk |
| Other | |
| Base Product Number | 4502-7041 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.15dB |
| Mating Cycles | 500 |
| Mfr | Radiall USA, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Clamp |
