ebm-papst Inc.Germany

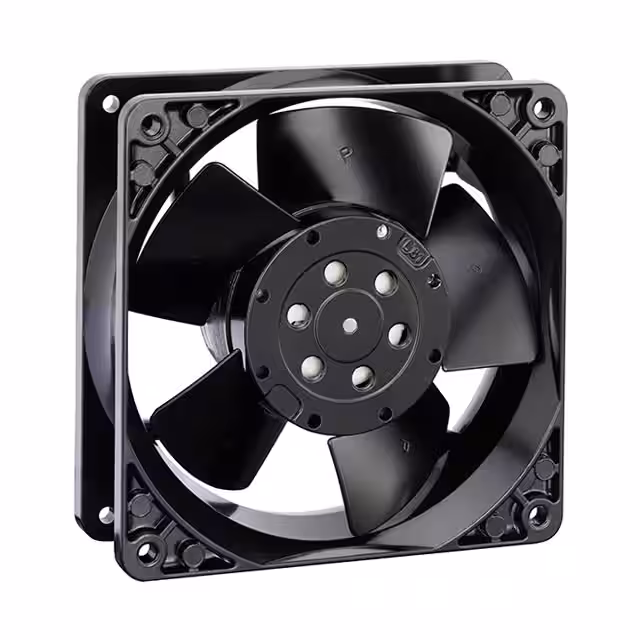

FAN AXIAL 119X38MM 115VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 15.00W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 48.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 47500 Hrs @ 40°C |
| Operating Temperature | 14~149°F(-10~65°C) |
| Package | Bulk |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 100.0 CFM (2.80m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Obsolete |
| RPM | 3000 RPM |
| Series | 4000N |
| Static Pressure | - |
| Termination | 2 Terminals |
| Weight | 1.2 lbs (544.3 g) |
| Width | 38.00mm |
