TurboFlex HeatersUnited States

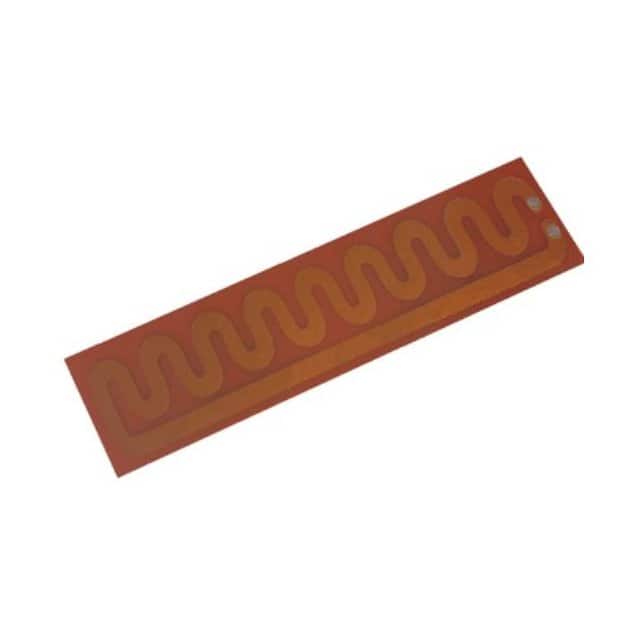

FLEX HEATER POLYIMIDE 12" WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 200 W |
| Voltage | - |
| Environment and package | |
| Package | Bulk |
| Temperature Rating | 365°F(185°C) |
| Other | |
| Approval Agency | - |
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Amber |
| Diameter | - |
| Features | Leads Potted, User Selectable Voltage |
| Length | 10.000" (254.00mm) |
| Length - Lead Wire | 12.000" (304.80mm) |
| Material | Polyimide |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Mfr | TurboFlex Heaters |
| Product Status | Active |
| Resistance | 0.7 Ohms |
| Series | 45 |
| Shape | Rectangular |
| Termination | Wire Leads |
| Thickness | - |
| Type | Flexible Heater, Foil |
| Watt Density @ 12V | 5 W/in² |
| Width | 4.000" (101.60mm) |
| Wire Gauge | 18 AWG |
