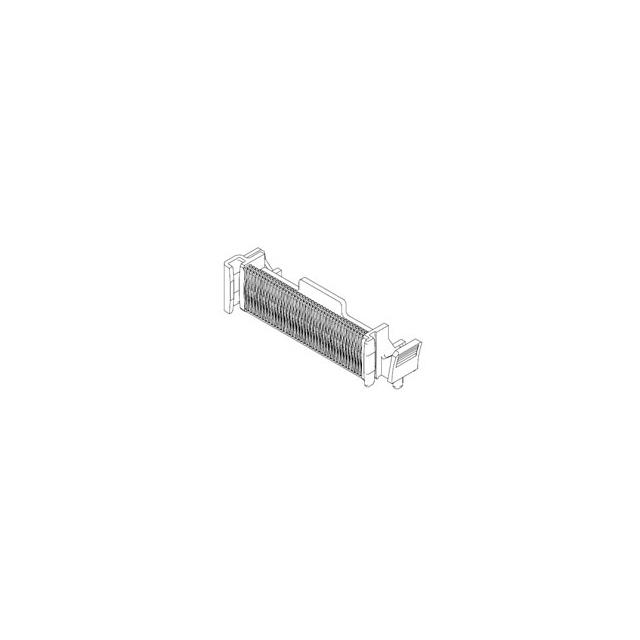

SLIDERZ 0050 PASS THRU CONNECTOR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Box |
| Other | |
| Color | Black |
| Connector Style | SliderZ |
| Connector Type | Header, Hermaphroditic Contacts |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Features | Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Columns | - |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.050" (1.27mm) |
| Product Status | Active |
| Series | SliderZ 44245 |
| Termination | Solder |
