TE ConnectivitySwitzerland

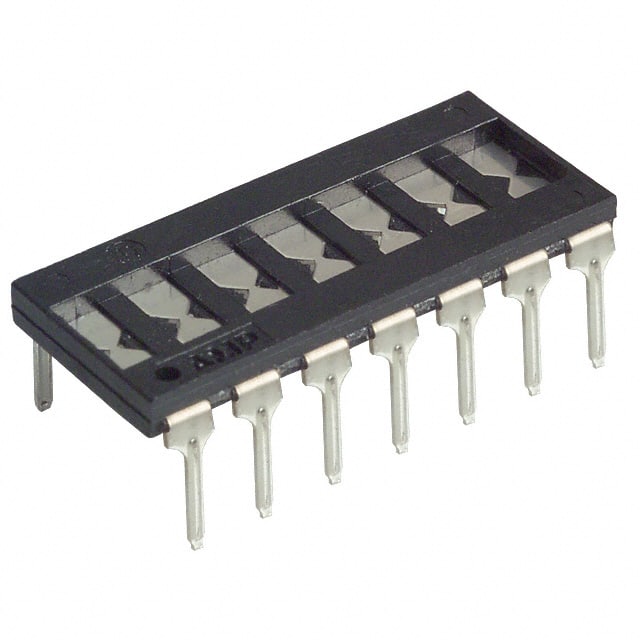

SWITCH SHUNT DIP PROGRAMMABLE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Height Above Board | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Breakable (Shunt) |
| Body Material | Thermoplastic |
| Circuit | Programmable |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Electrical Life | - |
| Features | - |
| Length | 0.700" (17.78mm) |
| Mechanical Life | - |
| Mfr | TE Connectivity ALCOSWITCH Switches |
| Number of Positions | 7 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Obsolete |
| Series | 7600 |
| Termination Style | PC Pin |
| Washable | Yes |
