Visual Communications Company - VCCUnited States

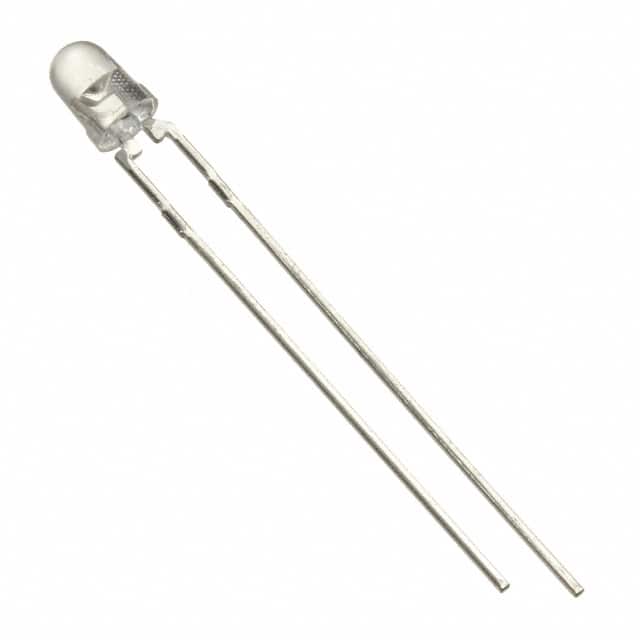

LED RED CLEAR T-1 T/H
All alternatives
View full reportTechnical parameters
Key specs
ColorRed
Wavelength650 nm
Forward voltage1.8 VTyp
Test current20 mA
Luminous intensity65 mcd
| Power | |
|---|---|
| Current - Test | 20mA |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Environment and package | |
| Height (Max) | 6.37mm |
| Lens Size | 3mm, T-1 |
| Mounting Type | Through Hole |
| Package | Bulk |
| Package / Case | Radial |
| Size / Dimension | - |
| Supplier Device Package | T-1 |
| Other | |
| Color | Red |
| Configuration | Standard |
| Features | - |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mfr | Visual Communications Company - VCC |
| Millicandela Rating | 65mcd |
| Product Status | Obsolete |
| Series | - |
| Viewing Angle | 45° |
| Wavelength - Dominant | - |
| Wavelength - Peak | 650nm |
