ebm-papst Inc.Germany

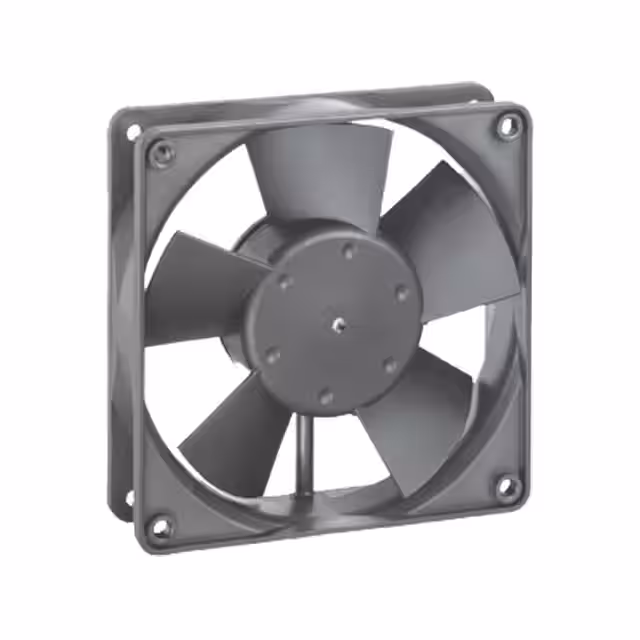

FAN AXIAL 119X32MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.210A |
| Power (Watts) | 5 W |
| Voltage Range | 12 ~ 28VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 45.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 62500 Hrs @ 40°C |
| Operating Temperature | -4~167°F(-20~75°C) |
| Package | Box |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 100.1 CFM (2.80m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 2800 RPM |
| Series | 4300U |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.5 lb (226.8 g) |
| Width | 32.00mm |
