Visual Communications Company - VCCUnited States

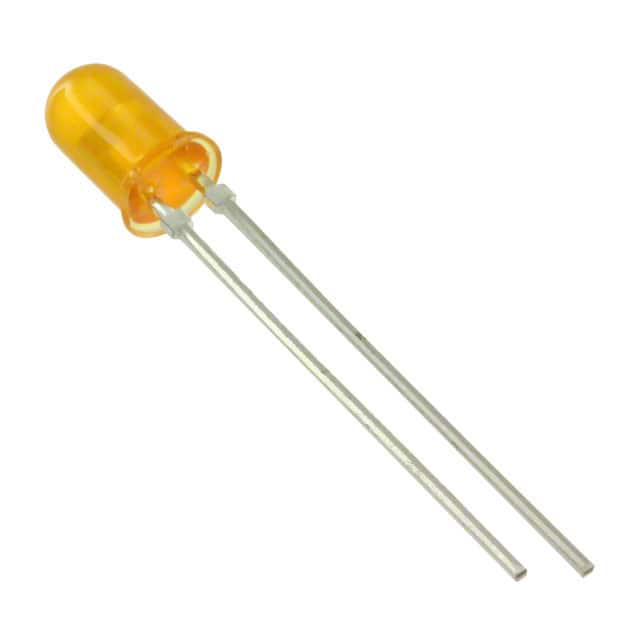

LED AMBER DIFFUSED T-1 3/4 T/H
All alternatives
View full reportTechnical parameters
Key specs
ColorAmber
Wavelength602 nm
Forward voltage1.9 VTyp
Test current10 mA
Luminous intensity7 mcd
| Power | |
|---|---|
| Current - Test | 10mA |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Environment and package | |
| Height (Max) | 9.98mm |
| Lens Size | 5mm, T-1 3/4 |
| Mounting Type | Through Hole |
| Package | Bulk |
| Package / Case | Radial |
| Size / Dimension | - |
| Supplier Device Package | T-1 3/4 (5mm) |
| Other | |
| Color | Amber |
| Configuration | Standard |
| Features | - |
| Lens Color | Amber |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Mfr | Visual Communications Company - VCC |
| Millicandela Rating | 7mcd |
| Product Status | Obsolete |
| Series | 4304H |
| Viewing Angle | 60° |
| Wavelength - Dominant | - |
| Wavelength - Peak | 602nm |
Documents
No documents are linked to this part yet.
