Laird Thermal Systems, Inc.United States

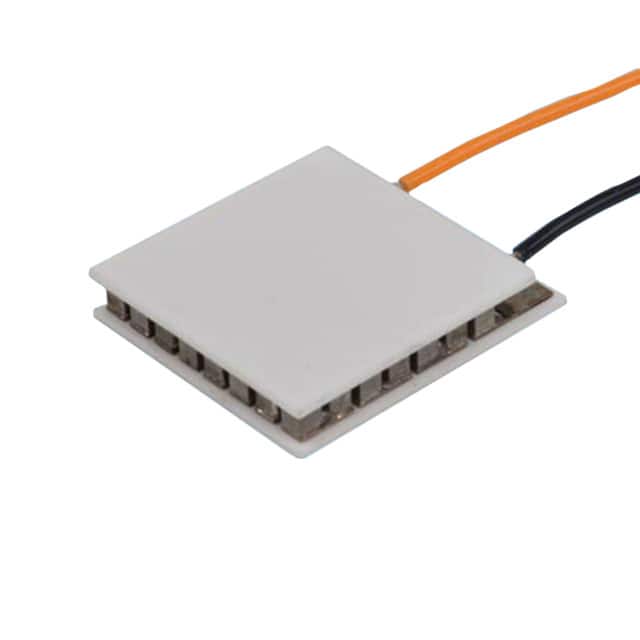

PELTIER MOD HT4,12,F2,4040,TA,W6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 3.8 A |
| Voltage - Max | 14.5 V |
| Environment and package | |
| Height | 4.14mm |
| Operating Temperature | 175°C |
| Package | Bulk |
| Size / Dimension | Rectangular - 43.90mm L x 39.90mm W |
| Other | |
| Delta Tmax @ Th | 64°C @ 25°C |
| Features | Lead Wires, Non-Sealed |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Obsolete |
| Qmax @ Th | 33.0W @ 25°C |
| Resistance | 3.49 Ohms |
| Series | ThermaTEC™ |
Documents
No documents are linked to this part yet.
