Laird Thermal Systems, Inc.United States

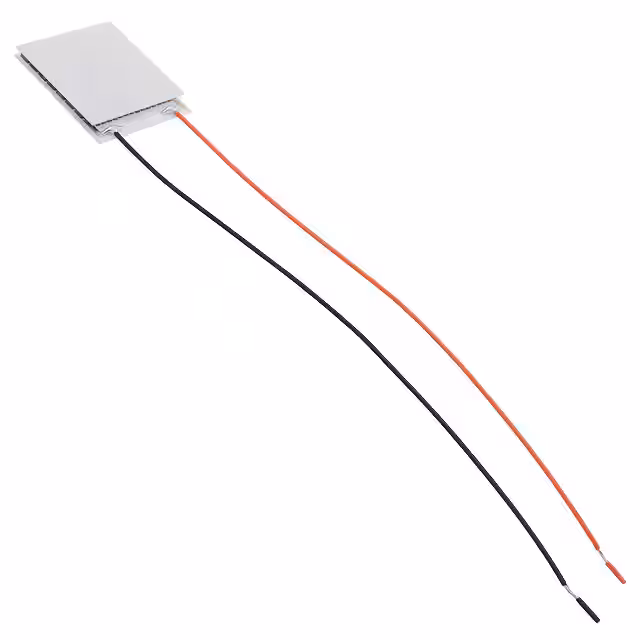

PELTIER MOD HT4,12,F2,3030,TA,W6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 4 A |
| Voltage - Max | 14.5 V |
| Environment and package | |
| Height | 3.20mm |
| Operating Temperature | 175°C |
| Package | Bulk |
| Size / Dimension | Rectangular - 34.00mm L x 30.00mm W |
| Other | |
| Delta Tmax @ Th | 63°C @ 25°C |
| Features | Lead Wires, Non-Sealed |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Obsolete |
| Qmax @ Th | 34.3W @ 25°C |
| Resistance | 3.36 Ohms |
| Series | ThermaTEC™ |
