Laird Thermal Systems, Inc.United States

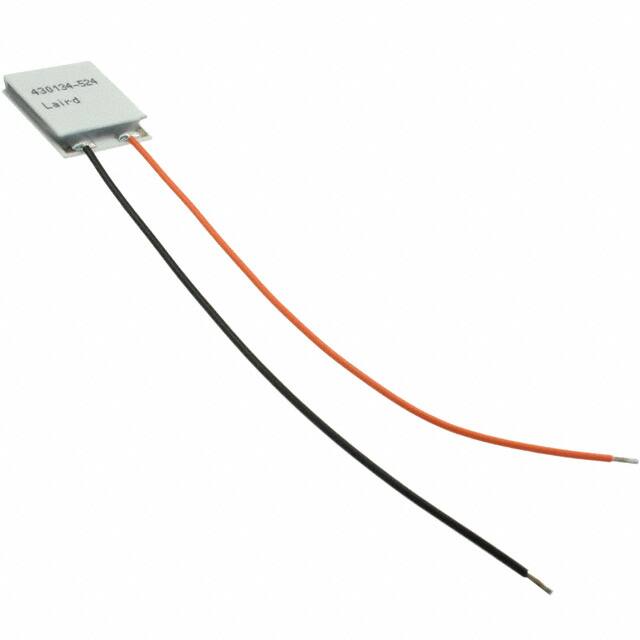

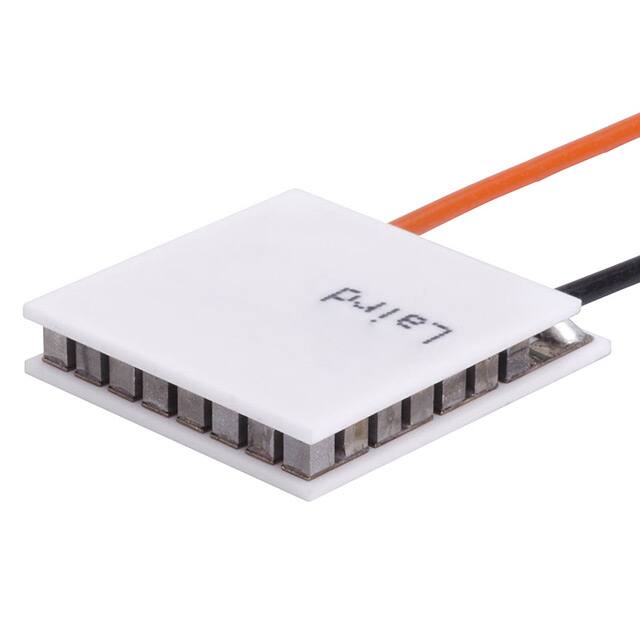

PELTIER HT9,3,F2,2525,TB,RT,W6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 9.6 A |
| Voltage - Max | 3.6 V |
| Environment and package | |
| Height | 5.00mm |
| Operating Temperature | 175°C |
| Package | Bulk |
| Size / Dimension | Rectangular - 28.70mm L x 25.40mm W |
| Other | |
| Delta Tmax @ Th | 63°C @ 25°C |
| Features | Lead Wires, Sealed - Silicone RTV |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Obsolete |
| Qmax @ Th | 20.1W @ 25°C |
| Resistance | 340 mOhms |
| Series | ThermaTEC™ |
