ConecGermany

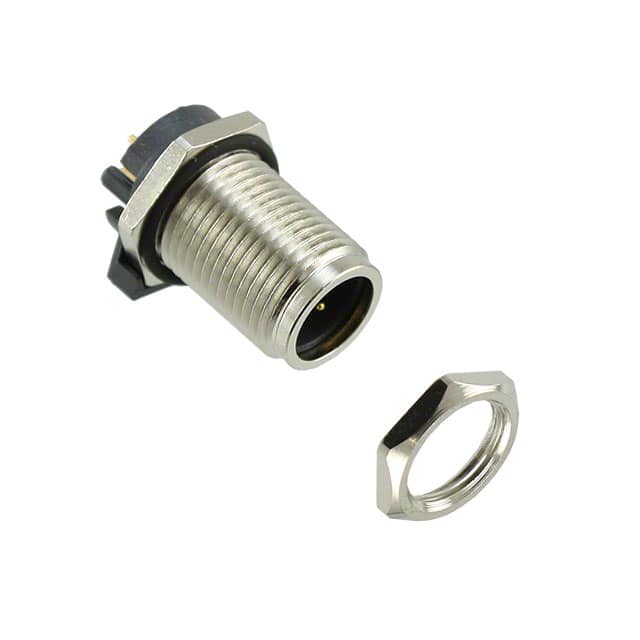

CONN RCPT MALE 4POS GOLD SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderMale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 250V |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | - |
| Base Product Number | 43-0119 |
| Cable Opening | - |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Zinc |
| Fastening Type | Threaded |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Conec |
| Number of Positions | 4 |
| Orientation | A |
| Primary Material | Metal |
| Product Status | Active |
| Series | 43 |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shielding | Shielded |
| Termination | Solder |
