Würth ElektronikGermany

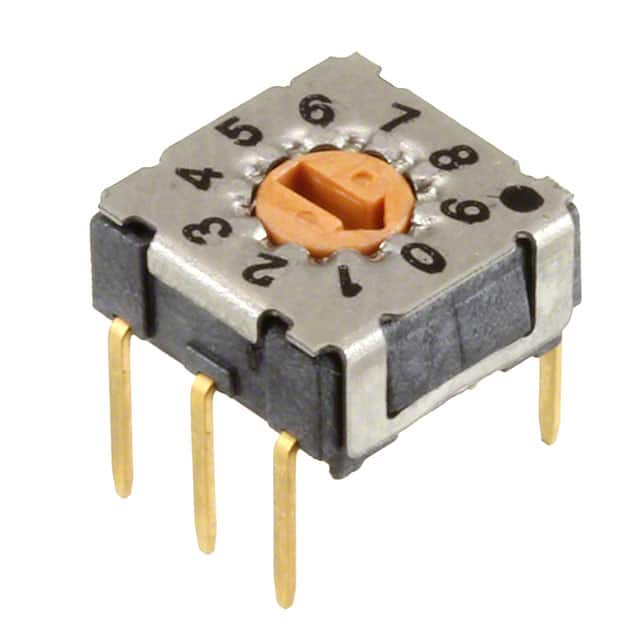

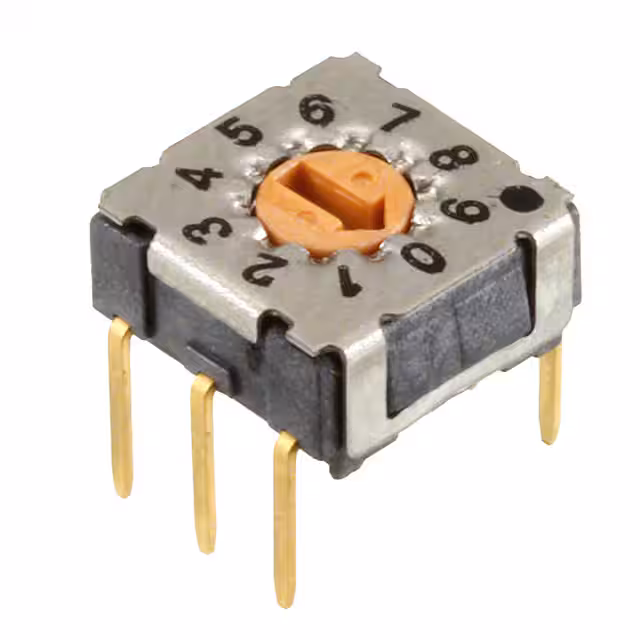

SW ROTARY DIP BCD COMP 100MA 42V
All alternatives
View full reportTechnical parameters
Key specs
Current rating100 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 100mA |
| Voltage Rating | 42VDC |
| Environment and package | |
| Height Above Board | 0.144" (3.66mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Liquid Crystal Polymer (LCP) |
| Circuit | BCD Complement |
| Contact Finish | Gold |
| Contact Material | - |
| Electrical Life | 25,000 Steps |
| Features | IP67 - Dust Tight, Waterproof |
| Length | 0.291" (7.40mm) |
| Mechanical Life | 25,000 Steps |
| Mfr | Würth Elektronik |
| Number of Positions | 10 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | WS-ROTV |
| Termination Style | PC Pin |
| Washable | Yes |
