Adafruit Industries LLCUnited States

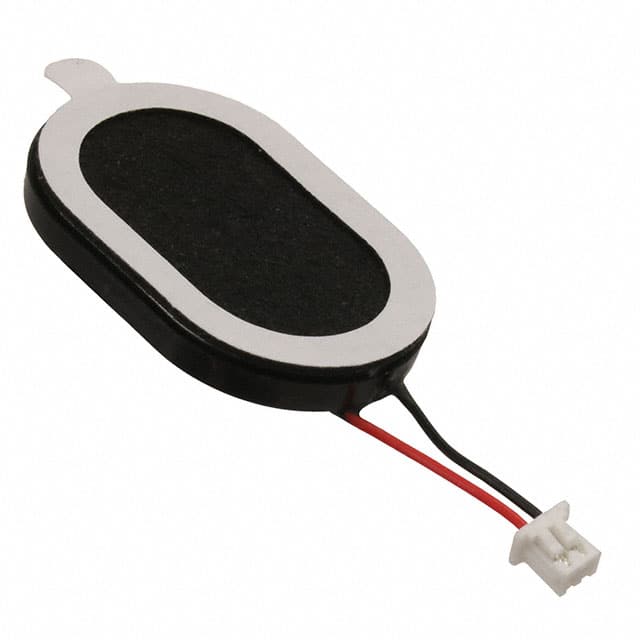

MINI OVAL SPEAKER WITH SHORT WIR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1.5 W |
| Power - Rated | 1 W |
| AC and DC characteristics | |
| Frequency Range | 670 Hz ~ 20 kHz |
| Frequency - Self Resonant | 670Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Operating Temperature | -20°C~55°C |
| Package | Bulk |
| Size / Dimension | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
| Other | |
| Efficiency - dBA | 96.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Mfr | Adafruit Industries LLC |
| Port Location | Top |
| Product Status | Active |
| Ratings | Washable |
| Series | - |
| Shape | Oval |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
