ebm-papst Inc.Germany

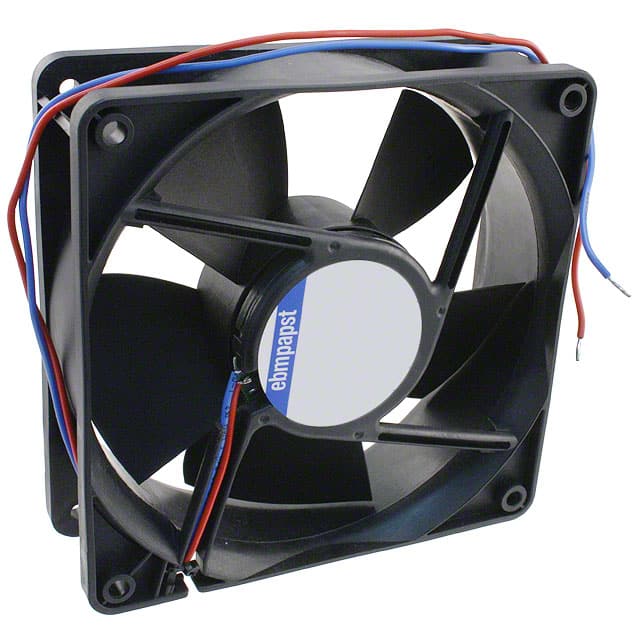

FAN AXIAL 119X38MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 4.3 W |
| Voltage Range | 7 ~ 14.5VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 42.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4~158°F(-20~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 97.0 CFM (2.72m³/min) |
| Approval Agency | - |
| Base Product Number | 4212N |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Obsolete |
| RPM | 2750 RPM |
| Series | 4200N |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.507 lb (229.97 g) |
| Width | 38.00mm |
