IcotekGermany

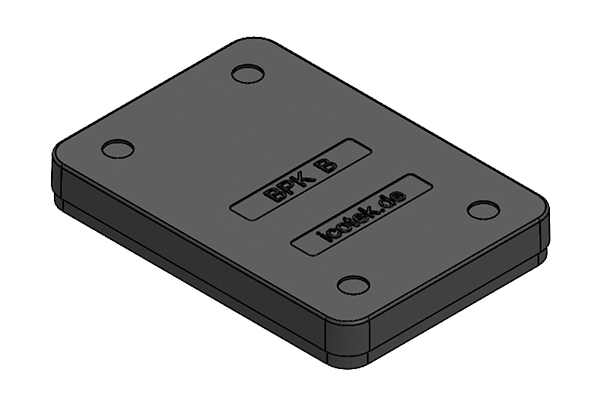

BPK Blank plates seal cut-outs for standard 10-pole / 16-pole / 24-pole industrial connectors with protection rating up to IP66 / UL type 12/4X*. Blank plates are mounted via screws. * 4X for indoor use only
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting options | Screw type mounting |
| Operating temperature | -30 C° to 110 C° |
| Other | |
| Flame class | UL94-V0, self-extinguishing |
| GTIN-13 | 4251269307393 |
| IP rating | IP64, IP66, IP55, IP54, IP65 |
| Material | Integrated sealing lip: Elastomer, Polypropylene |
| Properties | halogen free, silicone free |
| SKU | 42010 |
| UL Type (UL 50E) | UL Type 4X, UL Type 12 |
