Würth ElektronikGermany

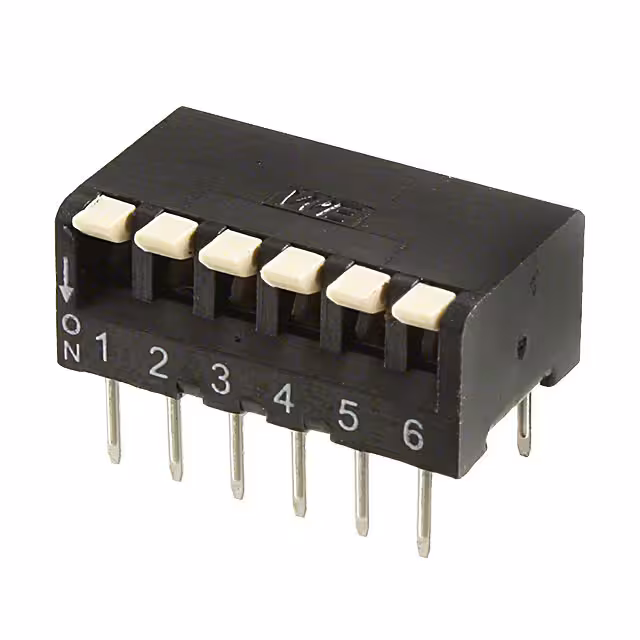

SWITCH PIANO DIP SPST 25MA 24V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST
Current rating25 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Environment and package | |
| Height Above Board | 0.272" (6.90mm) |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Piano |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | - |
| Electrical Life | 2,000 Cycles |
| Features | - |
| Length | 0.639" (16.24mm) |
| Mechanical Life | 5,000 Cycles |
| Mfr | Würth Elektronik |
| Number of Positions | 6 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Obsolete |
| Series | WS-DITU |
| Termination Style | PC Pin |
| Washable | No |
Documents
No documents are linked to this part yet.
