TE ConnectivitySwitzerland

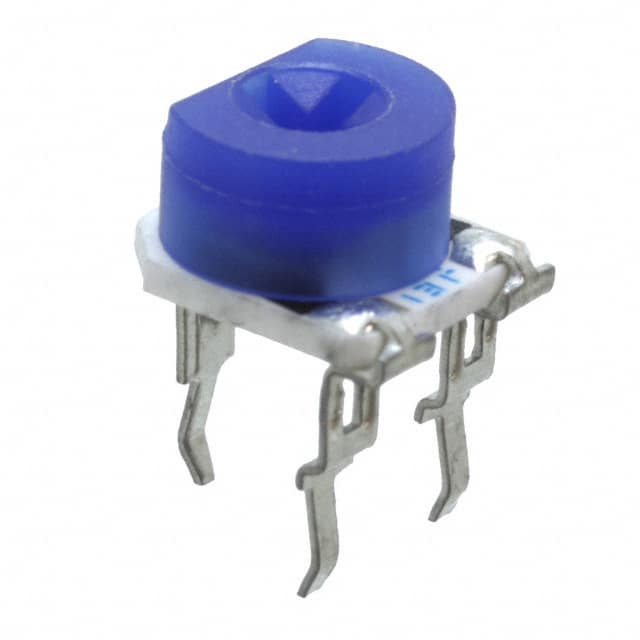

TRIMMER 10K OHM 0.2W PC PIN TOP
All alternatives
View full reportTechnical parameters
Key specs
Resistance10 kΩ
Tolerance25 %
Power200 mWMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 0.2W, 1/5W |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Bulk |
| Size / Dimension | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) |
| Temperature Coefficient | ±250ppm/°C |
| Other | |
| Adjustment Type | Top Adjustment |
| Base Product Number | 416M |
| Mfr | TE Connectivity Passive Product |
| Number of Turns | 1 |
| Product Status | Obsolete |
| Resistance | 10 kOhms |
| Resistive Material | Cermet |
| Series | 416, Citec |
| Termination Style | PC Pins |
| Tolerance | ±25% |
