LAPPGermany

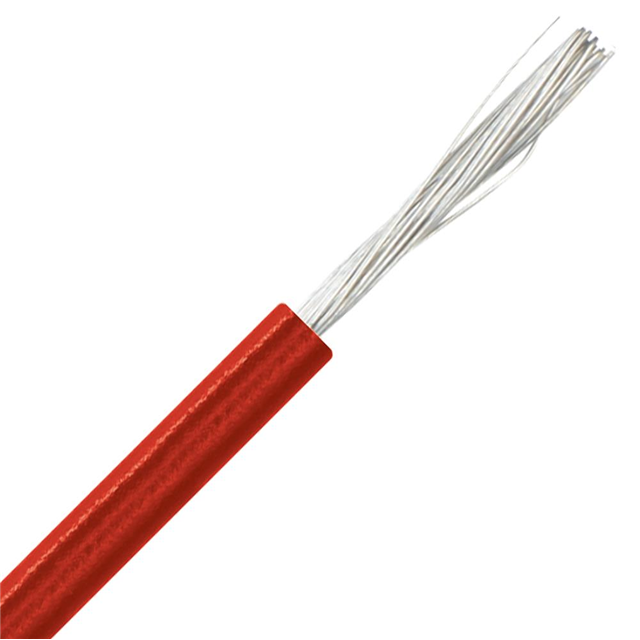

HOOK-UP STRND 16AWG RED 1=1FT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Operating Temperature | -40°C ~ 105°C |
| Package | Digi-Spool®, Continuous Spool |
| Spool Size | 328.1' (100.0m) |
| Other | |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 30/0.0102" |
| Features | Oil Resistant |
| Jacket Color | Red |
| Jacket (Insulation) Diameter | 0.134" (3.40mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | - |
| Length | Enter Number of Feet in Order Quantity |
| Mfr | LAPP |
| Product Status | Active |
| Ratings | UL Style 1007/1569 |
| Series | ÖLFLEX® |
| Wire Gauge | 16 AWG |
