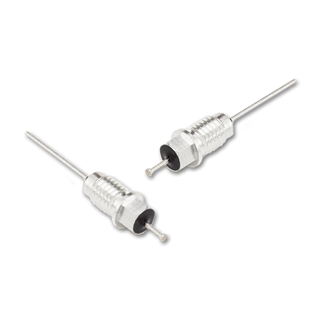

TUBULAR FILTER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 10 A |
| Number of Channels | 1 |
| Resistance - Channel (Ohms) | - |
| Voltage - Rated | 200V |
| AC and DC characteristics | |
| Center / Cutoff Frequency | - |
| Environment and package | |
| Height | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Package / Case | Axial, Eyelet |
| Size / Dimension | 0.143" Dia x 0.340" L (3.63mm x 8.64mm) |
| Other | |
| Applications | - |
| Attenuation Value | 5dB @ 10MHz, 45dB @ 100MHz, 68dB @ 500MHz, 40dB @ 10GHz |
| ESD Protection | No |
| Filter Order | 3rd |
| Mfr | Tusonix a Subsidiary of CTS Electronic Components |
| Product Status | Active |
| Series | 4100 |
| Technology | LC (Pi) |
| Type | - |
| Values | C = 1500pF |
