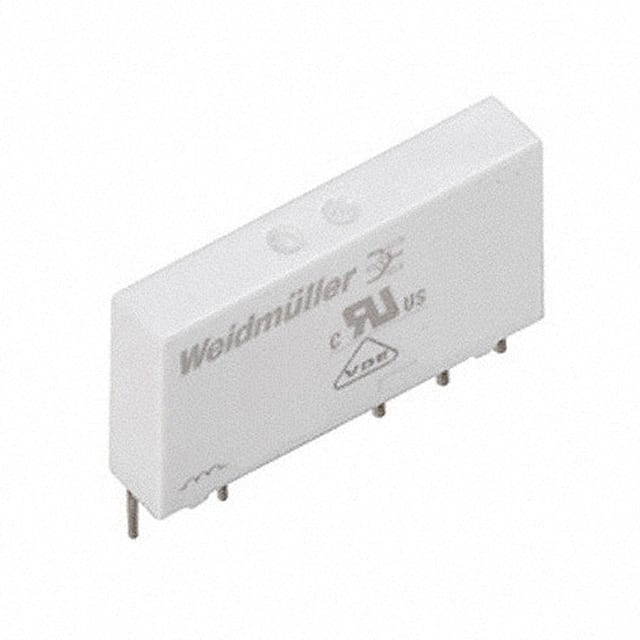

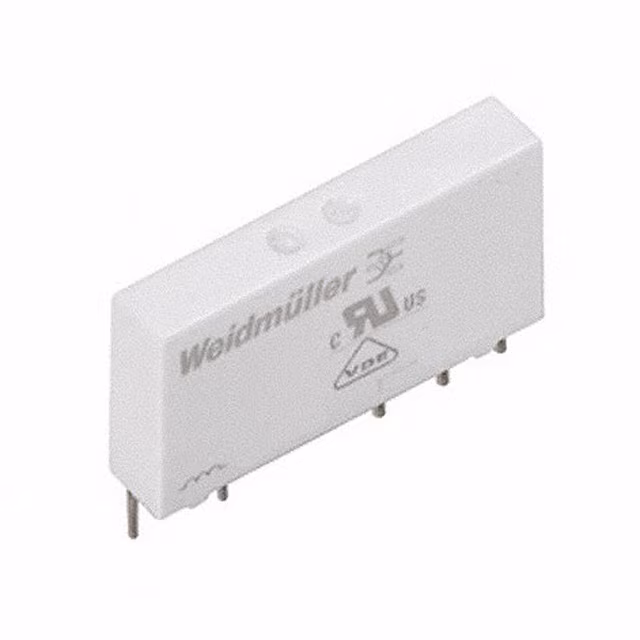

4061620000
WeidmüllerGermany

4061620000

ActivePower Relays, Over 2 Amps

RELAY GEN PURPOSE SPDT 6A 48V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Coil voltage48 V
Contact formSPDT
Contact current6 AMax
Switching voltage250 VMax
Power
Coil Current4.6 mA
Coil Voltage48VDC
Contact Rating (Current)6 A
Must Operate Voltage33.6 VDC
Must Release Voltage4.8 VDC
Switching Voltage250VAC - Max
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Other
Coil Insulation-
Coil Resistance10 kOhms
Coil TypeNon Latching
Contact FormSPDT (1 Form C)
Contact MaterialSilver Tin Oxide (AgSnO)
Features-
MfrWeidmüller
Operate Time8 ms
Product StatusActive
Relay TypeGeneral Purpose
Release Time4 ms
Seal Rating-
SeriesRSS
Termination StylePC Pin
