Key specs
Frequency30 MHz
Frequency tolerance10 ppm
Load capacitance4 pF
ESR40 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 30 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±10ppm |
| Environment and package | |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

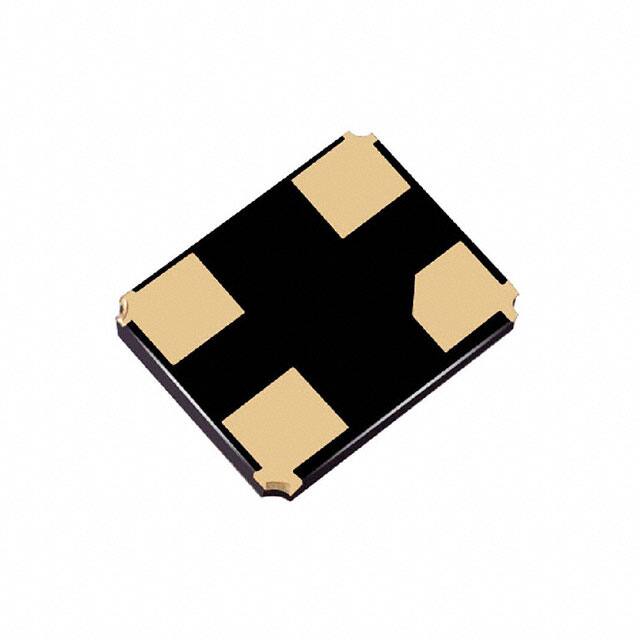

| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Load Capacitance | 4pF |
| Mfr | CTS-Frequency Controls |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | - |
| Series | 403W |
| Type | MHz Crystal |
