E-SwitchUnited States

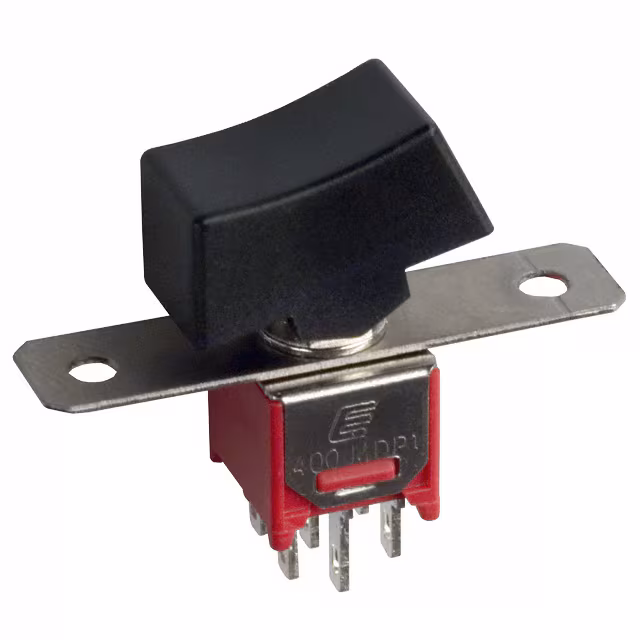

SWITCH ROCKER DPDT 3A 120V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-On
Current rating3 AMax
Voltage rating120 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A (AC/DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Environment and package | |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 15.75mm x 8.89mm |
| Other | |
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Electrical Life | 30,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | E-Switch |
| Product Status | Obsolete |
| Series | 400 |
| Switch Function | On-On |
| Termination Style | Solder Lug |
