Altech CorporationUnited States

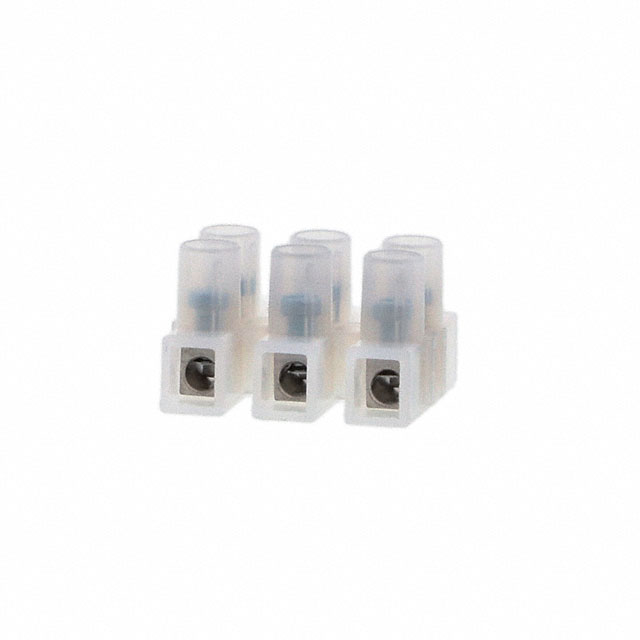

CONN TERM STRIP 3 POLES 8MM
All alternatives
View full reportTechnical parameters
Key specs
Rows2
Pitch8 mm
Current rating20 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 20A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Chassis, Panel |
| Operating Temperature | -30°C ~ 125°C |
| Package | Bulk |
| Other | |
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | White |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Mfr | Altech Corporation |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Pitch | 0.315" (8.00mm) |
| Product Status | Active |
| Series | EUROSTRIPS® ATS |
| Terminal Block Type | Eurostyle Terminal Strip |
| Terminal Screw Finish | Zinc, Yellow Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge | 12-22 AWG |
