MEC SwitchesDenmark

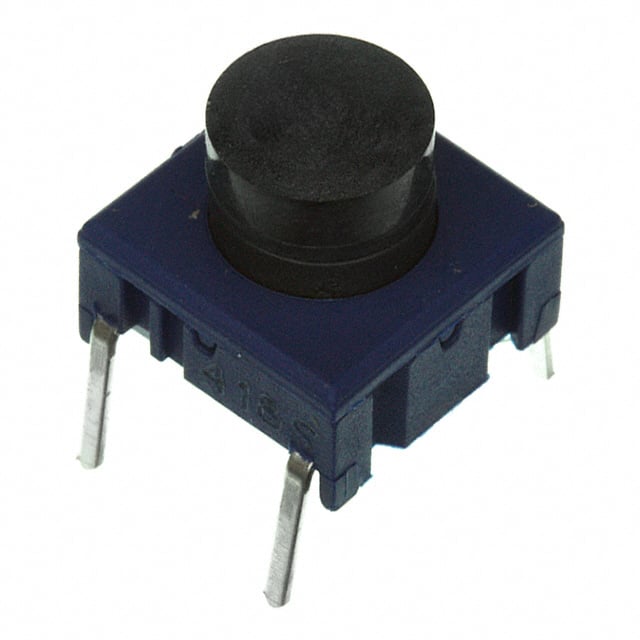

SWITCH TACTILE SPST-NO 0.05A 24V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 24VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 9.50mm |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~115°C |
| Package | Tube |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Base Product Number | 3ETL9 |
| Circuit | SPST-NO |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10,000,000 Cycles |
| Mfr | MEC Switches |
| Operating Force | 300gf |
| Outline | 10.10mm x 10.10mm |
| Product Status | Obsolete |
| Series | Multimec® 3 |
| Switch Function | Off-Mom |
| Switch Travel | 1.00mm |
| Termination Style | PC Pin |
