PCTEL, Inc.United States

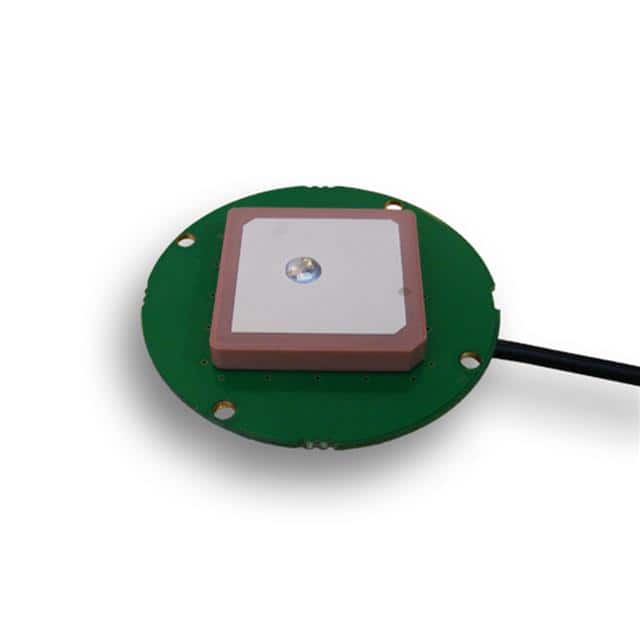

RF ANT 1.575GHZ CER PTCH MCX SMD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.575GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.565GHz ~ 1.585GHz |
| Gain | -2dBic, 3dBic |
| Environment and package | |
| Height (Max) | 0.303" (7.70mm) |
| Mounting Type | Adhesive |
| Package | Bulk |
| Other | |
| Antenna Type | Ceramic Patch |
| Applications | GNSS, GPS |
| Features | Cable - 150mm, LNA, Filter |
| Ingress Protection | - |
| Mfr | PCTEL, Inc. |
| Number of Bands | 1 |
| Product Status | Obsolete |
| Return Loss | - |
| RF Family/Standard | Navigation |
| Series | 3951D-HR |
| Termination | MCX |
| VSWR | 2 |
