39515000440
Littelfuse Inc.United States

39515000440

ActiveFuses

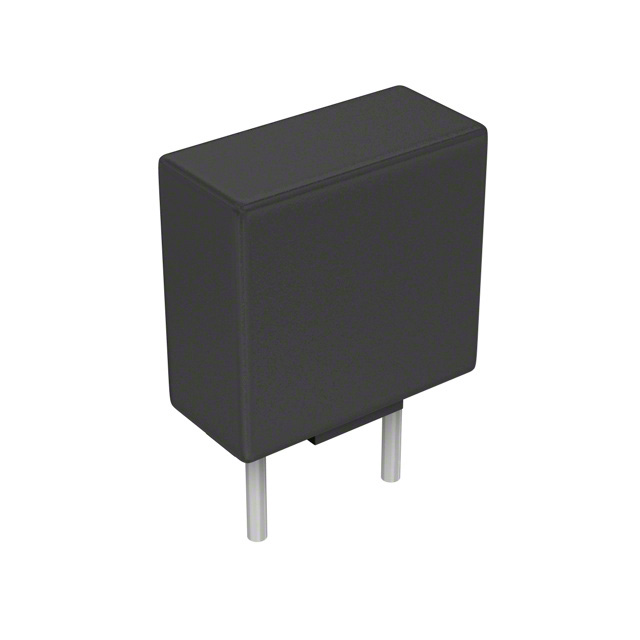

FUSE BOARD MOUNT 5A 125VAC RAD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Rated current5 A
Rated voltage125 V
Response timeFast
Breaking capacity100 A
Power
Breaking Capacity @ Rated Voltage100A
Current Rating (Amps)5 A
Voltage Rating - AC125 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Package / CaseRadial, Box

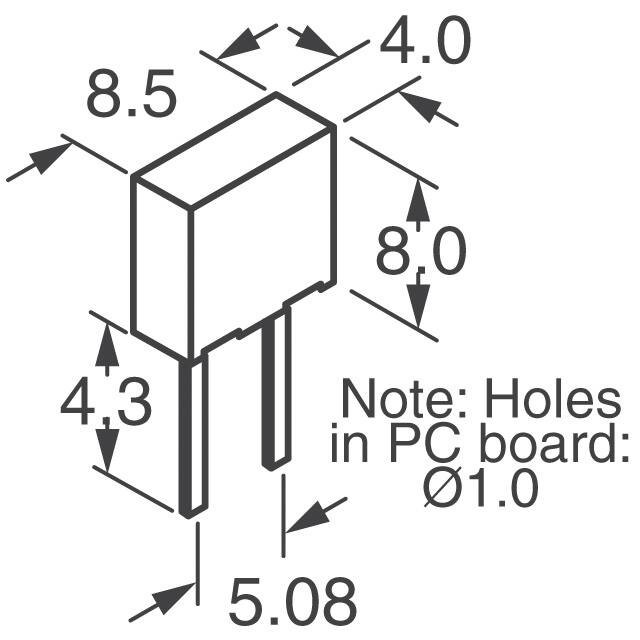

Size / Dimension0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
Other
Approval AgencycUL, PSE/JET, UL
Color-
DC Cold Resistance0.0139 Ohms
Fuse TypeBoard Mount (Cartridge Style Excluded)
Melting I²t6.1
MfrLittelfuse Inc.
Product StatusActive
Response TimeFast Blow
SeriesTE5® 395
