Alpha WireUnited States
394133

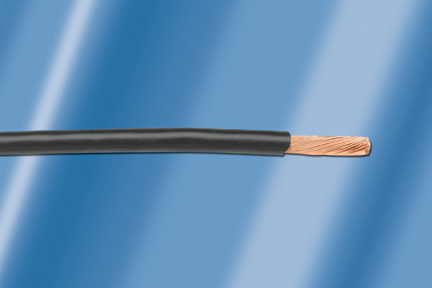

ActiveOur hook-up wire is available in a variety of insulations to meet your electrical and mechanical needs.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 150°C |
| Other | |
| 150°C / 600 V RMS | 150°C / 600 V RMS |
| 1) Component 1 | 1 X 1 HOOKUP |
| (1) Print | ALPHA WIRE-* 4 AWG E163869 RU AWM STYLE 3213 150C 600V LLXXXXX CSA AWM I A/B 150C 600V FT2 * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| 1) UL | 2) CSA International |
| 2) Bend Radius | 10X Cable Diameter |
| (2) Color(s) | WHITE |
| 2) Inductance | 0.04 μH/ft, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Conductor DCR | 0.27 Ω/1000ft @20°C, Nominal |
| 3) Pull Tension | 334 Lbs, Maximum |
| a) 1000 FT | 18 x 14.25 x 8 Max. 2 separate pieces; Min length/piece 250 FT. |
| AWM/STYLE 3213 | AWM I A/B |
| b) 500 FT | 18 x 9 x 8 Continuous length |
| c) 100 FT | 12 x 5.94 x 5 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
