Century Spring CorpUnited States

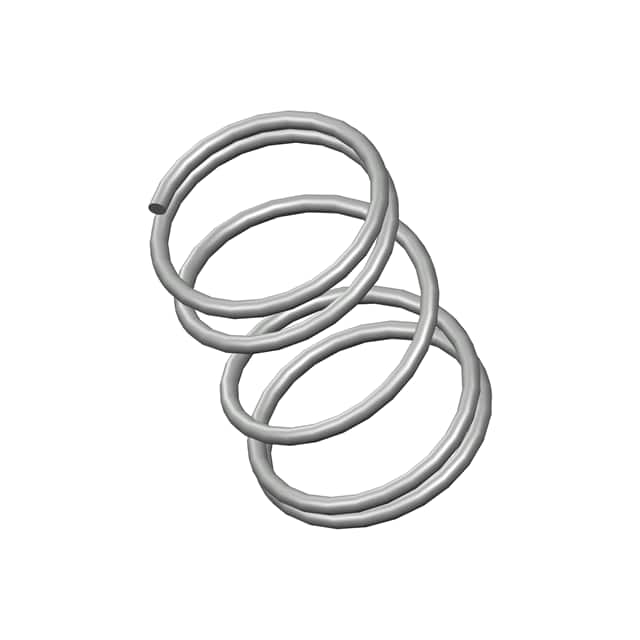

COMP O= .468,L= .69,W= .034
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.400" (10.16mm) |
| Diameter - Outside | 0.468" (11.89mm) |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 0.690" (17.53mm) |
| Material | Spring Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 7.8 lbs/in |
| Series | - |
| Wire Diameter | 0.034" (0.86mm) |
Documents
No documents are linked to this part yet.
