Laird Thermal Systems, Inc.United States

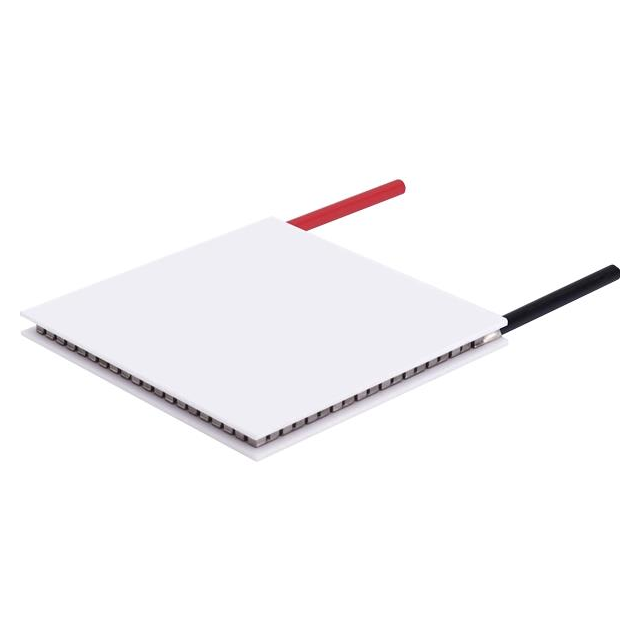

PCX15.6,19,F1,4040,TA,RT,W6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 16 A |
| Voltage - Max | 23.3 V |
| Environment and package | |
| Height | 2.70mm |
| Operating Temperature | 120°C |
| Package | Bulk |
| Size / Dimension | Square - 40.00mm L x 40.00mm W |
| Other | |
| Delta Tmax @ Th | 73.6°C @ 27°C |
| Features | Lead Wires, Sealed - Silicone RTV |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Obsolete |
| Qmax @ Th | 215.2W @ 27°C |
| Resistance | 1.37 Ohms |
| Series | PCX |
