Laird Thermal Systems, Inc.United States
387002598

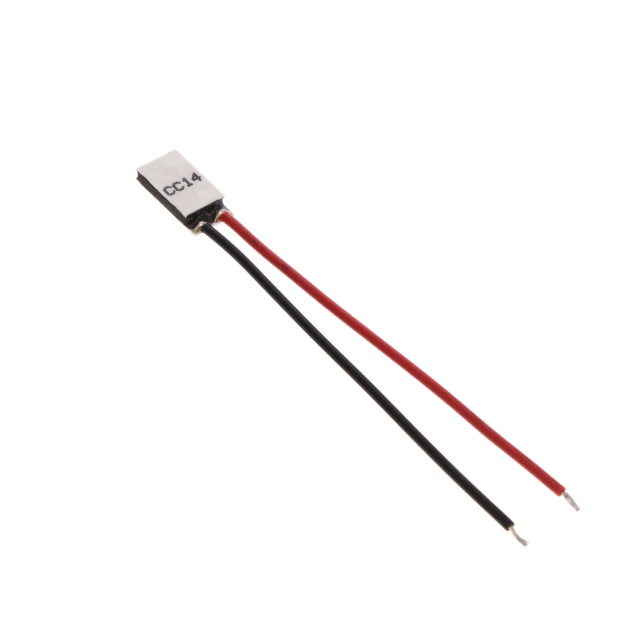

Thermoelectric, Peltier ModulesOT15-30-F2A-0610-11-EP-W2.25
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1.5 A |
| Voltage - Max | 3.4 V |
| Environment and package | |
| Height | 1.96mm |
| Operating Temperature | 80°C |
| Size / Dimension | Rectangular - 12.30mm L x 6.20mm W |
| Other | |
| Delta Tmax @ Th | 67°C @ 25°C |
| Features | Lead Wires, Sealed - Epoxy |
| Manufacturer | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Packaging | Bulk |
| Part Status | Active |
| Qmax @ Th | 3.0W @ 25°C |
| Resistance | 2.09 Ohms |
| Series | OptoTEC™ |
