Laird Thermal Systems, Inc.United States
387000176

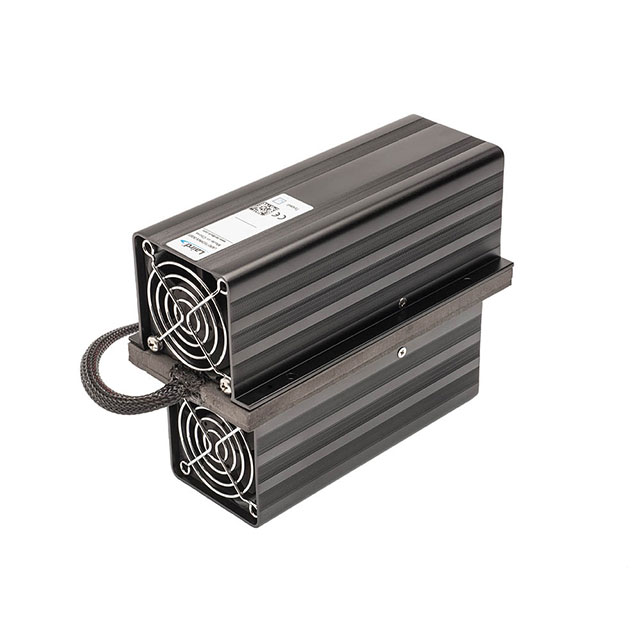

Thermoelectric, Peltier AssembliesTHERMOELECT ASSY AIR-AIR 55W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 2.6 A |
| Power - Cooling | 55 W |
| Voltage | 24 V |
| Environment and package | |
| Dimensions - Overall | 180mm L x 84mm W x 142mm H |
| Operating Temperature | -10°C ~ 50°C |
| Other | |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Manufacturer | Laird Thermal Systems, Inc. |
| Packaging | Box |
| Part Status | Active |
| Series | Tunnel |
| Weight | 3.7 lbs (1.7 kg) |
Documents
No documents are linked to this part yet.
