Bourns Inc.United States

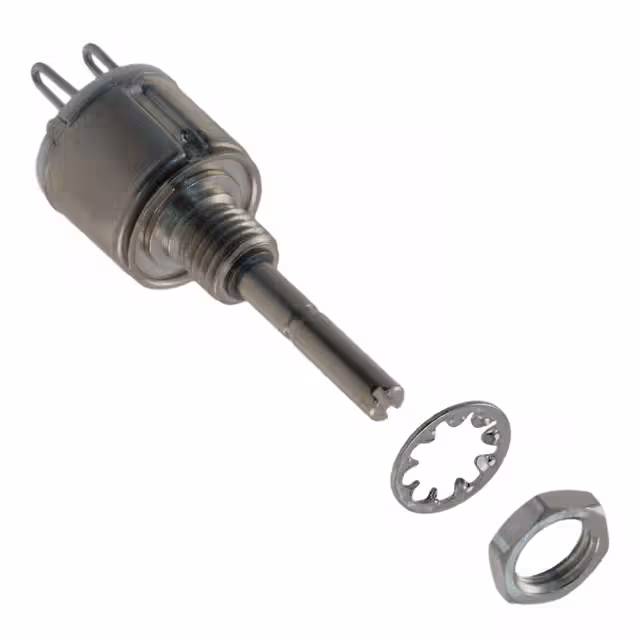

POT 10K OHM 1W CERMET LINEAR
All alternatives
View full reportTechnical parameters
Key specs
Tolerance10 %
Power1 WMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 1W |
| Environment and package | |
| Mounting Type | Panel Mount |
| Package | Bulk |
| Size - Body | Round - 0.500" Dia (12.70mm) |
| Temperature Coefficient | ±150ppm/°C |
| Other | |
| Actuator Diameter | 0.125" (3.18mm) |
| Actuator Length | 0.875" (22.23mm) |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Base Product Number | 3862C |
| Built in Switch | None |
| Bushing Thread | 1/4-32 |
| Features | - |
| Mfr | Bourns Inc. |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Product Status | Obsolete |
| Resistance (Ohms) | 10k |
| Resistive Material | Cermet |
| Rotation | 295° |
| Series | 3862 |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | ±10% |
Documents
No documents are linked to this part yet.
