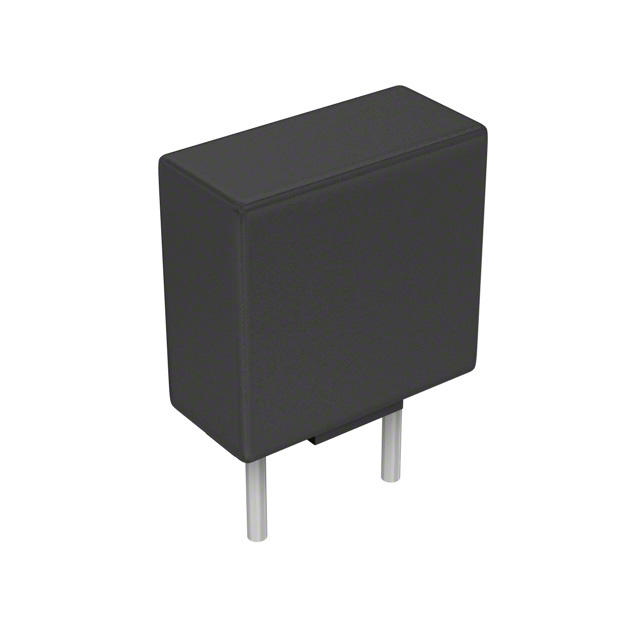

38505000440
Littelfuse Inc.United States

38505000440

ActiveElectrical, Specialty Fuses

FUSE BRD MNT 500MA 125VAC RADIAL

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Breaking Capacity @ Rated Voltage50A
Current Rating (Amps)500mA
Voltage Rating - AC125 VAC
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 85°C
PackageBulk
Package / CaseRadial, Box
Size / Dimension0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
Other
ApplicationsTelecom
Approval AgencycURus
Class-
DC Cold Resistance0.257 Ohms
Features-
Fuse TypeBoard Mount
Melting I²t1.2
MfrLittelfuse Inc.
Product StatusActive
Response TimeSlow Blow
SeriesTE5® 385

Documents

No documents are linked to this part yet.
