Cornell Dubilier Electronics (CDE)United States

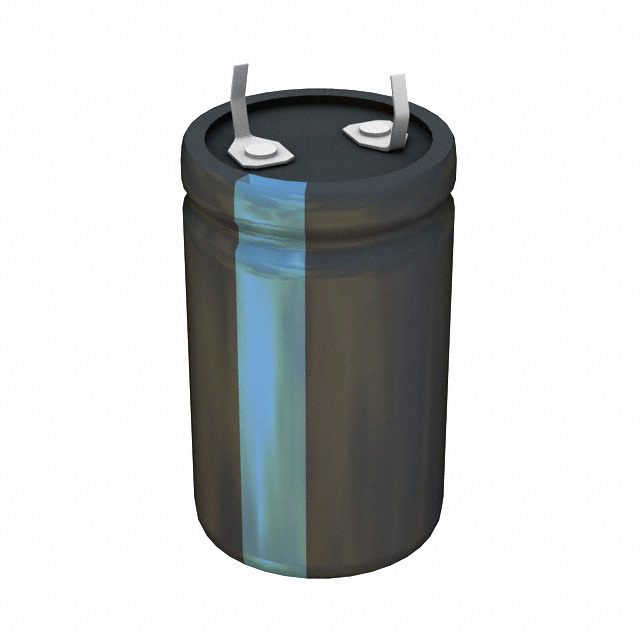

380LX331M250H032
Aluminum Electrolytic CapacitorsCAP ALUM 330UF 20% 250V SNAP TH
All alternatives
View full reportTechnical parameters
Key specs
Capacitance330 µF
Rated voltage250 V
Tolerance20 %
ESR550 mΩMax
Lifetime3 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 250 V |
| AC and DC characteristics | |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 550mOhm |
| Lead Spacing | 0.394" (10.00mm) |
| Mfr | Cornell Dubilier Knowles |
| Packaging | Bulk |
| Part Status | Obsolete |
| Polarization | Polar |
| Ratings | - |
| Series | 380LX |
| Tolerance | ±20% |
